| Device type |

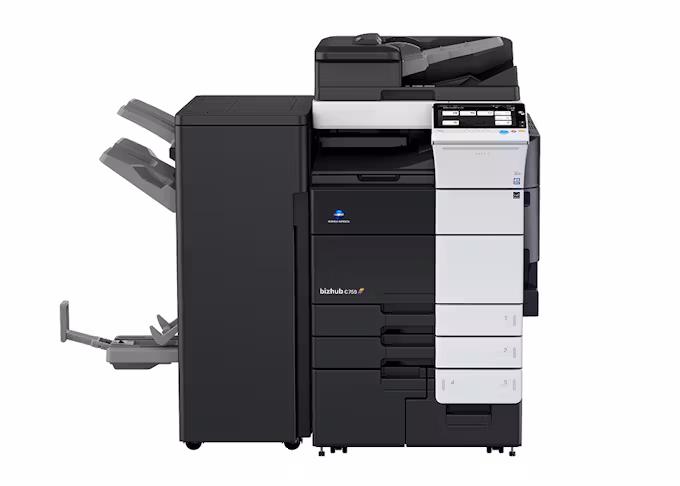

Multifunction Printer |
| Colour or mono |
Colour |
| Print speed |
70-90 PPM |
| Mono output speed (A4 pages per min) |
75 |
| Colour output speed (A4 pages per min) |
65 |
| Print resolution (dpi) |
1200 x 1200 |
| Copy resolution (dpi) |
600 x 600 |
| First time to print mono (secs) |
3.6 |
| First time to print colour (secs) |
4.9000000000000004 |
| Warm up time (secs) |
22 |
| Output size |
SRA3 to A5, B6S1, A6S1 Thick paper, Foolscap2 (8-1/2” × 13-1/2”; 200 mm × 330 mm; 8-1/8” × 13-1/4”; 8-1/2” × 13”; 8-1/4” × 13”; 8” × 13”), 8K, 16K, Long Length Paper (210 × 457.3 mm to 297 × 1200mm) |
| Output size max |
SRA3 |
| Monthly print volume |
80000 |
| Average monthly volume (A4 pages per month) |
83333 |
| Average monthly print volume |
50-80K |
| Duty cycle |
215000 |
| Standard paper input tray 1 (sheets) |
500 (up to SRA3) |
| Standard paper input tray 2 (sheets) |
500 (up to SRA3) |
| Standard paper input tray 3 (sheets) |
1500 (A4) |
| Standard paper input tray 4 (sheets) |
1000 (A4) |
| Standard Paper Input Bypass Tray (sheets) |
150 (up to SRA3) |
| Maximum paper input (sheets) |
6650 |
| Paper weight trays (gsm) |
52 - 256 |
| Paper Weight Bypass Tray (gsm) |
52 - 300 |
| Standard memory (GB) |
4 |
| Storage Capacity (Standard) |
250 |
| Document feeder (sheets) |
300 |
| Weight (kg) |
(Approx) 219 |
| Dimension W x D x H (mm) |
670 × 938 × 1232 |
| Dimension inclusions |
Dimensions include Automatic Document Feeder (ADF) |
| Power requirements (V / Amp / Hz) |
220-240V / 10A / 50-60Hz |
| Max power consumption (kW) |
2.1 |
| Automatic duplex unit paper weight (gsm) |
52 to 256 gsm |
| Automatic duplex unit max sheet size |
SRA3 |
| Scan type |
Full colour scanner |
| Scanning speed simplex max |
120 |
| Scanning speed duplex max |
240 |
| Interface |
Ethernet 10BASE-T/100BASE-TX/1000BASE-T |
| Protocol |
TCP/IP (FTP, SMB, SMTP) |
| Dual scan |
Yes |
| Scan resolution |
200 dpi / 300 dpi / 400 dpi / 600 dpi |
| Output format |
TIFF, JPEG, PDF, Compact PDF, XPS, Compact XPS, PPTx, DOCx*, XLSx*, Searchable PDF*, PDF / A*, Linearised PDF *optional |
| Main functions |
Scan to E-mail, Scan to FTP, Scan to Box (HDD), Scan to PC (SMB), Network TWAIN, Scan to WebDAV, Scan to Me, Scan to Home, Scan to USB, Scan to Scan Server, Scan to Web Service (WSD-Scan), Device Profile for Web Services (DPWS) |
| Operating system support |
Windows 7 (32/64bit) / 8/8.1 (32/64bit) / Windows Server 2008/2008R2/ Windows Server 2012/2012R2 (64bit) / Windows Server 2016 (64bit) / Mac OS X 10.8 or later / Unix / Linux / Citrix |
| Processor |
1.6 GHz (ARM Coretex Dual Core) |
| Supported protocols |
TCP/IP, IPX/SPX (NDS), SMB (Net BEUI), LPD, IPP1.1, SNMP, HTTP |
| Memory |
(Shared with copier) |
| Printer language |
PCL6 (Ver. 3.0) Emulation, PCL5e/c Emulation, PostScript 3 Emulation (3016), XPS Ver. 1.0 |
| Printer interface |
Ethernet 10BASE-T, 100BASE-TX/1000BASE-T, Hi-Speed USB |
