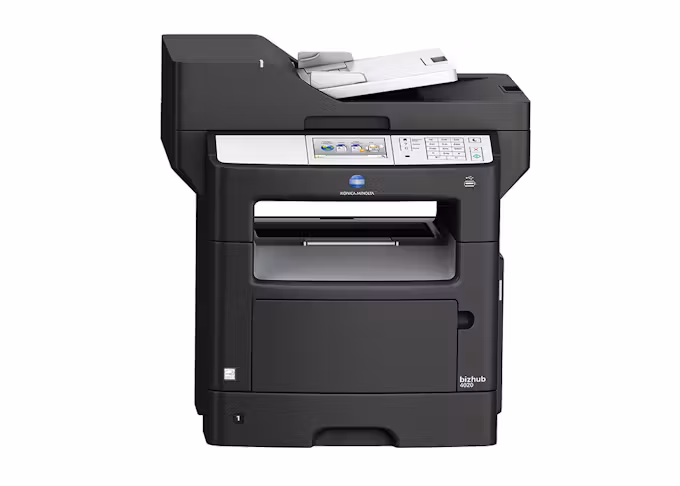

The bizhub 4020 multifunction printer gives you speed and efficiency - with fast 40 ppm print/copy output in high-resolution B&W, plus colour scanning from a 4.3” touchscreen that’s as easy to operate as a familiar tablet.
40 ppm
4.3” touchscreen
Handles rising workloads with networkable cost-efficiency
Air Print & Google Cloud Support
Device type | Multifunction Printer |
---|---|
Colour or mono | Mono |
Print speed | 31-40 PPM |
Mono output speed (A4 pages per min) | 40 |
Print resolution (dpi) | 600 x 600 |
Copy resolution (dpi) | 1200 x 1200 |
First time to print mono (secs) | 6.5 |
Warm up time (secs) | 77 |
Output size | A6-A4 |
Output size max | A4 |
Standard paper input tray 1 (sheets) | 250 |
Standard Paper Input Bypass Tray (sheets) | 100 |
Maximum paper input (sheets) | 2000 (75 gsm) max. |
Paper weight trays (gsm) | 60-120 |
Paper Weight Bypass Tray (gsm) | 60-163 |
Standard memory (GB) | 512MB |
Weight (kg) | 21.8 |
Dimension W x D x H (mm) | 489 × 452 × 502 |
Power requirements (V / Amp / Hz) | 220-240V / 50-60Hz |
Max power consumption (kW) | 972 W or less |
Automatic duplex unit paper weight (gsm) | 60 to 90 gsm |
Automatic duplex unit max sheet size | A4 |
Scan type | Full colour scanner |
Scanning speed simplex max | 42 |
Scanning speed duplex max | 18 |
Interface | 10-BASE-T/100BASE-TX/1000BASE-T |
Output format | TIFF, JPEG, PDF, XPS |
Operating system support | Windows XP / XP 64bit / Vista / Vista 64bit / 7 / 7 64bit / 8 / 8 64bit Windows Server 2003 / Server 2003 64bit / Server 2008 / Server 2008 64bit / Server 2008 R2 Mac OS X 10.6 / X 10.7 / X 10.8 Linux |
Supported protocols | TCP/IP, IPX/SPX (NDS support), SMB (NetBEUI), LPD, IPP1.1, SNMP, HTTP |
Printer language | PCL5e/c Emulation, PCL XL (Ver.3.0) Emulation,PostScript3 (3016) Emulation, XPS (Ver.1.0) |
Printer interface | Ethernet (10BASE-T / 100BASE-TX / 1000BASE-T),USB 1.1, USB 2.0 |
